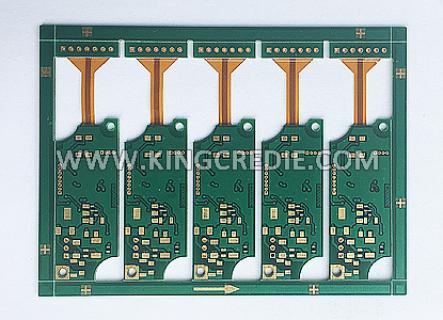

Double Sided Rigid Flexible PCB
collection

Type:Rigid-Flex Pcb

View quote information
share:

PRODUCT DESCRIPTION

 Board Thickness

 Rigid: 1.2mm +/-0.15

 Flex: 0.13mm +/-0.03

 Copper Thickness

 1/1 OZ

 Stiffener

 None

 Min. Line Width/ Spacing

 5mil (0.13mm)/5mil (0.13mm)

 Coverlay

 Yellow

 Silkscreen Color

 White

 Surface Finishing

 ENIG(Ni: 3-5um/Au: 0.05um)

 Solder mask Color Green

 Layer Count

 2 Layer (1rigid+1flex)

 Min.Quantity of Order

 No MOQ


Rigid-flexible PCB material introduction

Mixed materials including RF and high speed, standard FR-4, polyimide flex. Adhesiveless or adhesive based polyimide flex constructions, with cover coat or flexible solder mask materials.


Processing capability

 ● Layer count: 6 (rigid ) / 2 (flex)

 ● Copper Foil: 1/3oz to 2oz

 ● Min Line width/spacing : 3.0/3.0mil

 ● Drill to conductor: 8mil

 ● Surface Finishing: ENIG, Immersion Tin, Immersion Silver, Organic coating processing,etc


Quality control

 KingCredie follow the international standard manufacturing

 ● IPC-A-600G Printed board Acceptance Criteria

 ● IPC/CPCA-6013B Flex boards’ Performance specification

 ● IPC-TM-650 Printed board experiment method


Rigid-flex is a complicated product that demands a lot of interaction between the PCB provider and the customers. Like other complex products, early discussions between King Credie and the designer is necessary to optimize the design for manufacturability and to optimize costs. Please contact King Credie if you need further information or assistance, we are happy to help you.
